SECURE EVERY
ENTRY POINT.
Zoom Tech's access-control architecture combines web-based management, intelligent authentication and modular hardware for controlled, scalable entry systems.
ACCESS CONTROL, BUILT AROUND THE WAY YOUR FACILITY WORKS
From credential presentation at the gate to central authorization and physical barrier release, Zoom Tech integrates every step into a single synchronized workflow.
Engineered for Simplicity & Scale
Browser-accessible management. Zero client software dependencies across desktop, tablet, and smartphone browsers.
No software installation required. Ready out-of-the-box with wizard-driven setup for fast commissioning and door assignment.
Expand from smaller installations to larger systems. Modular DIN rail ecosystem supporting additional readers, relays, and inputs.
INTRODUCING PROTEGE WX
Based on enterprise-grade Protege GX technology, the Protege WX package delivers unified access control, intrusion detection, and building automation in a compact, self-contained DIN rail controller.
NO SOFTWARE.
NO SINGLE WORKSTATION.

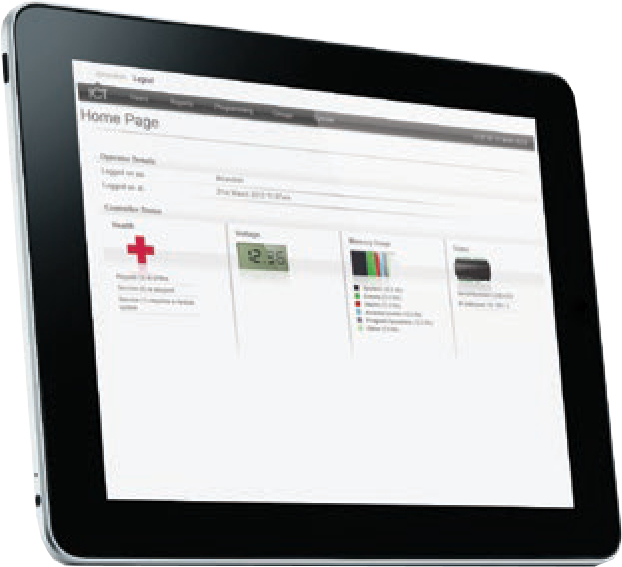

The web-based interface means the system can be accessed from modern browsers across desktop, laptop, tablet and smartphone devices.
Direct onboard web-server communication. Configure doors, schedules, and users from any standard HTML5 browser.
Responsive user interface functioning identically across Windows, macOS, iOS, iPadOS, and Android operating systems.

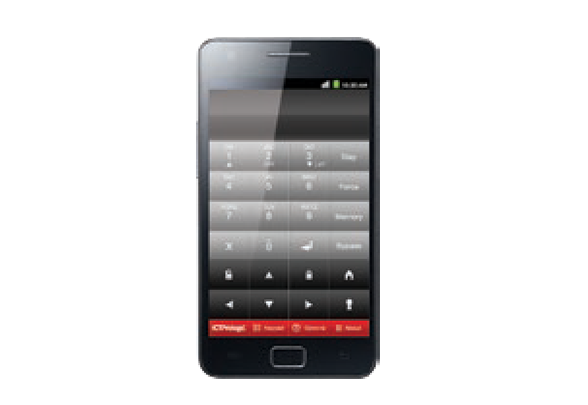

Security managers and facility operators can monitor alarms and unlock doors securely from anywhere on the network.
ACCESS CONTROL HARDWARE ECOSYSTEM
Authentic Protege WX DIN rail controllers, expander modules, contactless readers, and pre-packaged deployment kits.

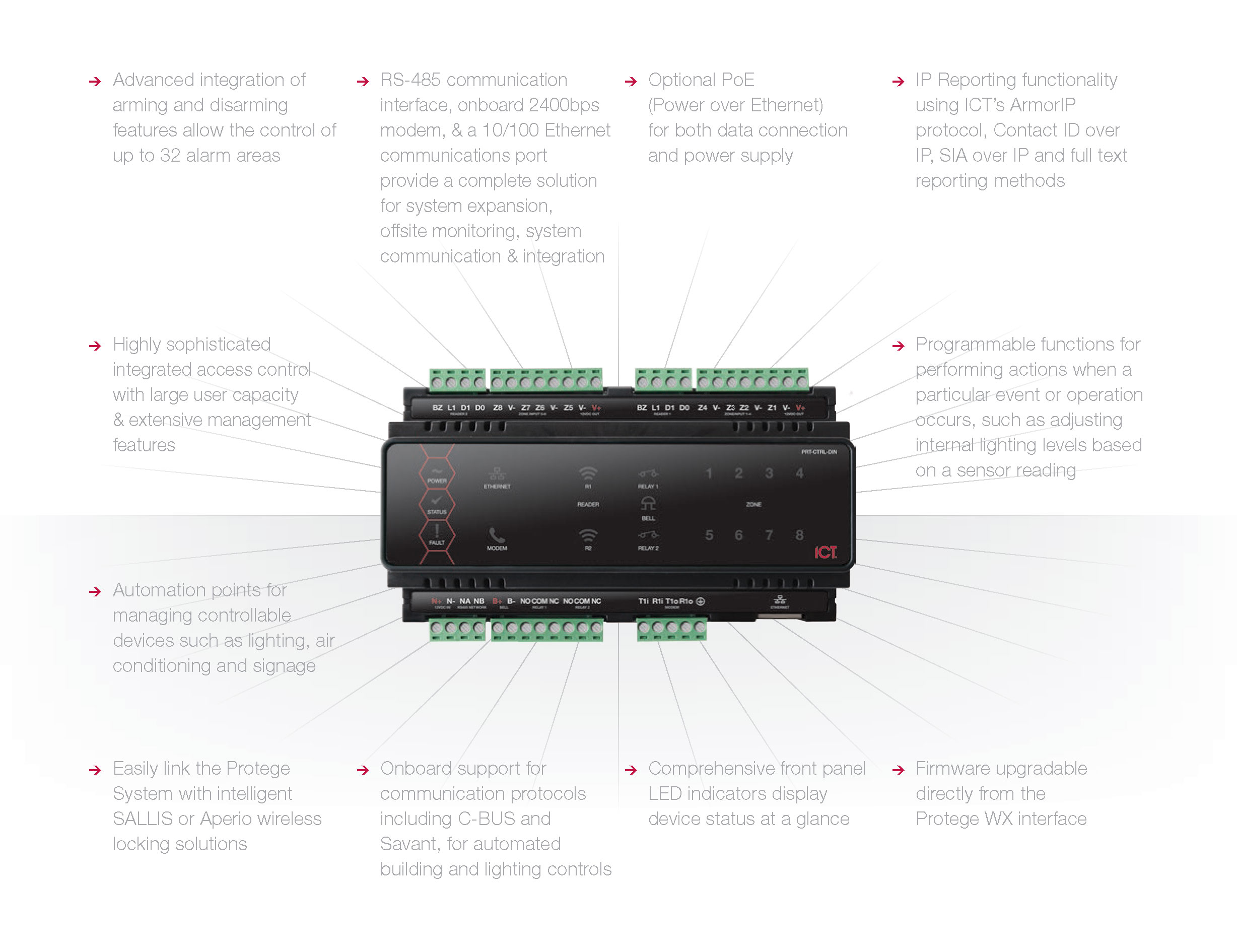

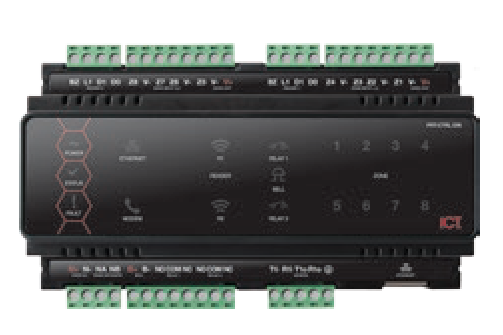

Protege WX DIN Controller
Central 32-bit controller with onboard Ethernet and power management.
2-Reader Expander Module
Extends capability to control two additional door or gate reader interfaces.

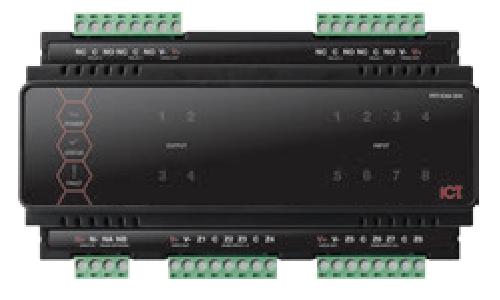

16-Input Expander Module
Provides 16 monitored zone inputs for sensors and emergency contacts.

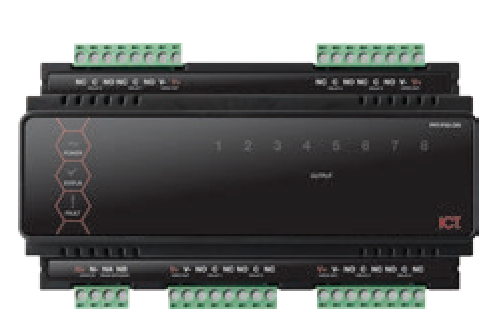

8-Output Relay Expander
Adds 8 form-C relay outputs for turnstile triggers and elevator control.

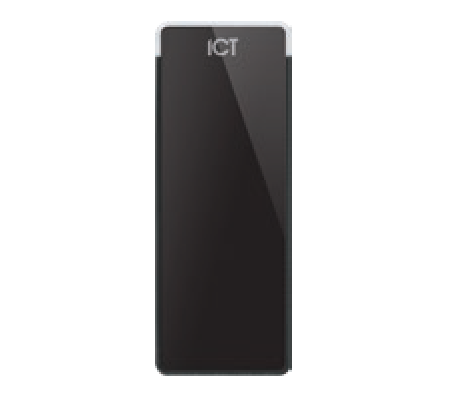

Smart Card Reader
Multi-frequency RFID and NFC reader engineered for turnstiles and doors.

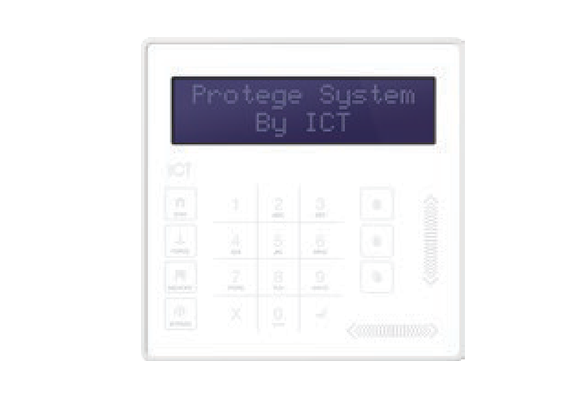

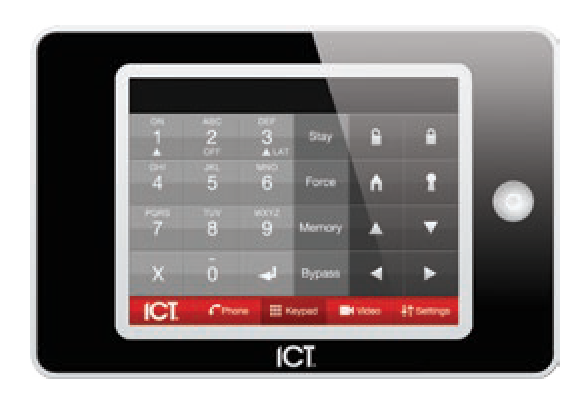

Alphanumeric LCD Keypad
Interactive security keypad for status monitoring, arming, and PIN entry.
Smart Credentials & Fobs
Encrypted contactless smart cards, keyfobs, and long-range UHF tags.

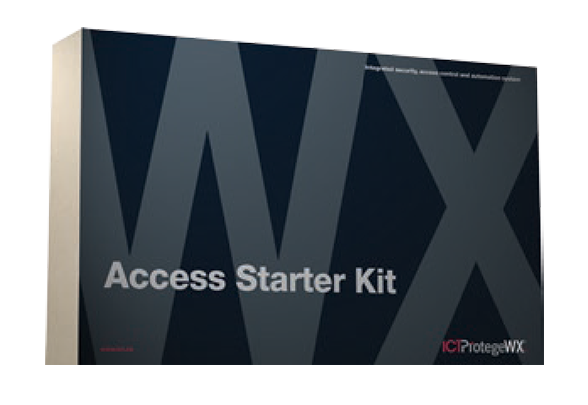

Protege WX Access Starter Kit

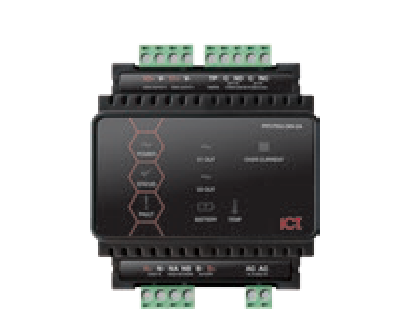

Includes the central web-enabled DIN rail controller, 2A power supply, and smart card readers for rapid single-site turnstile and door access.
Protege WX Intrusion Starter Kit
Provides the foundational hardware components required for comprehensive perimeter and building intrusion detection with keypad terminal.
CORE PLATFORM CAPABILITIES
Verified engineering capabilities built natively into the Protege WX firmware architecture.
Web-Based Architecture
Cross-platform access and flexible system configuration from any modern web browser without client software dependencies.
Wizard-Driven Configuration
Intuitive wizard interfaces guide technicians through setup for fast commissioning and error-free door assignment.
User & Event Reporting
Simple, intuitive event logging and user access tracking with real-time timestamps and door activity audit trails.
CSV Report Export
Comprehensive reports exportable directly to CSV format for straightforward filtering, auditing, and spreadsheet analysis.
Expandable Hardware Ecosystem
Full compatibility with Protege DIN rail expander modules, power supplies, card readers, and keypad accessories.
Optional WXpert Mode
Enrol in optional WXpert mode to unlock advanced customization, complex logic programming, and extended elevator control.
ENGINEERED FOR MULTIPLE FACILITY SCALES
From single-door access points to multi-lane corporate turnstile lobbies and industrial perimeter perimeters.
Corporate Headquarters & Lobbies
Multi-lane speed gates and optical barriers synchronized with destination elevator dispatch and visitor management.
High-Security Boundary Control
Full-height turnstiles with long-range reader authentication and anti-tailgating for industrial campuses and perimeters.
High-Throughput Concourses
Continuous duty turnstiles maintaining high passage flow rates for passenger terminals and public facilities.
SYSTEM ARCHITECTURE & HARDWARE TOPOLOGY
Hierarchical communication from web-based browser interface down to physical turnstile hardware.
PLAN YOUR ACCESS CONTROL SYSTEM
Speak with the Zoom Tech engineering team about your access-control requirements, controller configurations, and site layouts.
