SG-AR-02 SWING GATE
SWING SERIES

SG-AR-02

Architectural swing barrier with streamlined chassis profile.

  • •Passage width: 600mm (Standard) / 900mm (Wide)
  • •Throughput: 35 – 40 people / min
  • •Housing: SUS304 Stainless Steel (1.5mm)
  • •Drive: Brushless DC Servo Motor
  • •Reliability: 15 Million Cycles
  • •IP rating: IP54 (Indoor / Sheltered)
Passage Width
600mm (Standard) / 900mm (Wide)
Throughput
35 – 40 people / min
Housing Metallurgy
SUS304 Stainless Steel (1.5mm)
Motor / Drive
Brushless DC Servo Motor
Reliability
15 Million Cycles
IP Rating
IP54 (Indoor / Sheltered)
KEY FEATURES

Engineering Advantages & Mechanism Highlights

01
Architectural Elegance
Streamlined brushed stainless steel housing designed for premium corporate lobbies.
02
Bi-Directional Passage
Fast, smooth wing actuation supporting high-density traffic flow.
03
Safety Sensing
Multi-beam optical safety arrays preventing panel closure on pedestrians.
TECHNICAL SPECIFICATIONS

SG-AR-02 Specifications

1. Dimensions & Construction
Cabinet Dimensions L1400mm * W150mm * H1045mm
Cabinet Material SUS304 Stainless Steel (1.5mm)
Barrier Panel Material Tempered Glass / Acrylic (10mm)
Cabinet Weight Single: 60 kg / Dual: 75 kg
IP Protection Level IP54 (Indoor / Sheltered)
2. Passage & Performance
Walkway Width 600mm (Standard) / 900mm (Wide)
Passing Speed 35 – 40 people / min
MTBF Reliability 15 Million Cycles
3. Electrical, Drive & Interfaces
Operating Supply AC220V±10% 50Hz
Power Consumption 100W – 200W
Motor Drive Mechanism Brushless DC Servo Motor
Communication Interface RS485 / Relay Contact
2D BUILD / ENGINEERING BLUEPRINTS (Click blueprint to enlarge)

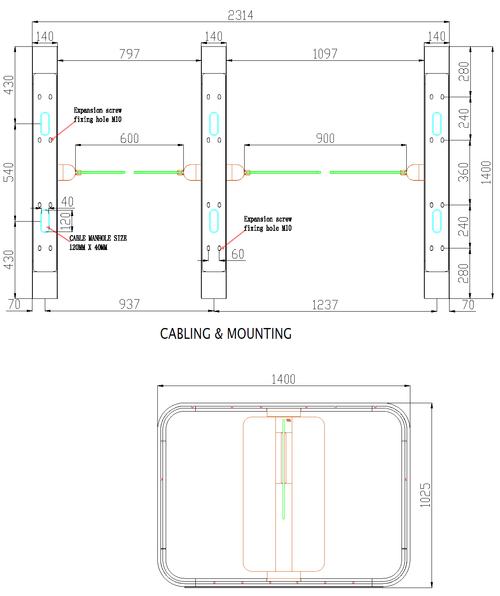

Front Elevation CAD (450 × 600 mm)
🔍 Enlarge
Front Elevation CAD (450 × 600 mm)

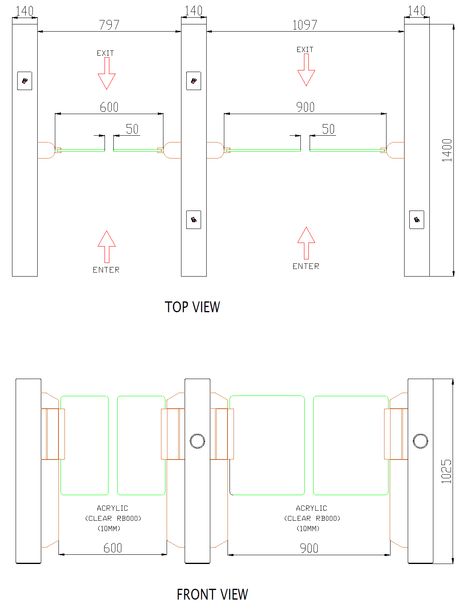

Top Footprint CAD (480 × 550 mm)
🔍 Enlarge
Top Footprint CAD (480 × 550 mm)
Side Elevation CAD (460 × 560 mm)
🔍 Enlarge
Side Elevation CAD (460 × 560 mm)
