SG-AR-01 SWING GATE
SWING SERIES

SG-AR-01

Where intelligent control meets elegant design.

  • •Passage width: 600mm (Standard) / 900mm (Handicap)
  • •Throughput: 35 – 40 people / min
  • •Housing: Roll steel powder coated / SUS304 optional
  • •Drive: DC Servo Motor
  • •Reliability: 20 Million Cycles
  • •IP rating: IP42 (Indoor)
Passage Width
600mm (Standard) / 900mm (Handicap)
Throughput
35 – 40 people / min
Housing Metallurgy
Roll steel powder coated / SUS304 optional
Motor / Drive
DC Servo Motor
Reliability
20 Million Cycles
IP Rating
IP42 (Indoor)
KEY FEATURES

Engineering Advantages & Mechanism Highlights

01
Sleek & Compact
Fits seamlessly into any architectural entrance with compact chassis footprint.
02
Silent Operation
Smooth, noise-free DC servo motor drive engineered for continuous duty.
03
Reliable Performance
Tested to 20 million MTBF cycles with multi-signal interface compatibility.
TECHNICAL SPECIFICATIONS

SG-AR-01 Specifications

1. Dimensions & Construction
Cabinet Dimensions L260mm * W168mm * H1200mm
Cabinet Material Roll steel powder coated / SUS304 optional
Barrier Panel Material Acrylic (10mm)
Cabinet Weight Single: 35 kg / Dual: 42 kg
IP Protection Level IP42 (Indoor)
2. Passage & Performance
Walkway Width 600mm (Standard) / 900mm (Handicap)
Passing Speed 35 – 40 people / min
MTBF Reliability 20 Million Cycles
3. Electrical, Drive & Interfaces
Operating Supply AC220±10%V 50±10%Hz
Power Consumption 110W – 240W
Motor Drive Mechanism DC Servo Motor
Communication Interface Level/pulse, RS485, RS232
2D BUILD / ENGINEERING BLUEPRINTS (Click blueprint to enlarge)

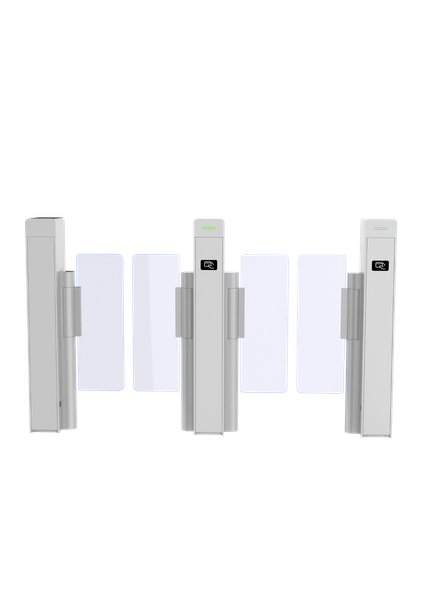

Front Profile CAD (425 × 600 mm)
🔍 Enlarge
Front Profile CAD (425 × 600 mm)

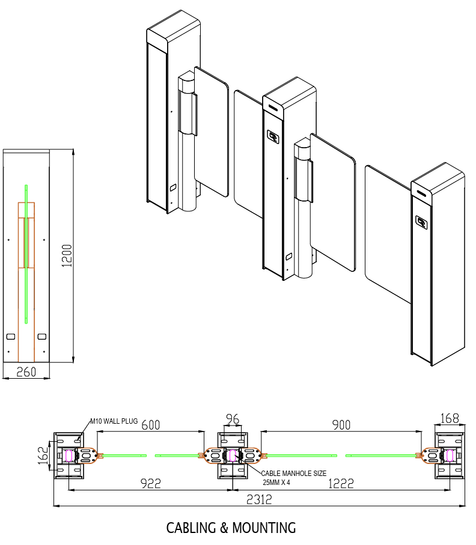

Top Footprint CAD (476 × 545 mm)
🔍 Enlarge
Top Footprint CAD (476 × 545 mm)

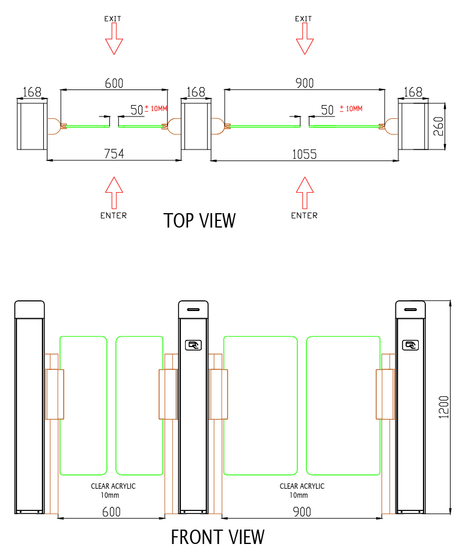

Side Elevation CAD (462 × 553 mm)
🔍 Enlarge
Side Elevation CAD (462 × 553 mm)
CONSULT OUR ENGINEERS

PLAN YOUR ACCESS CONTROL SYSTEM

Speak with the Zoom Tech engineering team about your access-control requirements and site layouts for SG-AR-01.
