FT-FM-02 FULL HEIGHT TURNSTILE
MAX SERIES

FT-FM-02

Full-height perimeter turnstile engineered for maximum boundary defense.

  • •Passage width: 650mm
  • •Throughput: 25 – 30 people / min
  • •Housing: SUS304 Stainless Steel (2.0mm)
  • •Drive: Semi-Automatic Solenoid / Motor
  • •Reliability: 10 Million Cycles
  • •IP rating: IP65 (Outdoor Waterproof)
Passage Width
650mm
Throughput
25 – 30 people / min
Housing Metallurgy
SUS304 Stainless Steel (2.0mm)
Motor / Drive
Semi-Automatic Solenoid / Motor
Reliability
10 Million Cycles
IP Rating
IP65 (Outdoor Waterproof)
KEY FEATURES

Engineering Advantages & Mechanism Highlights

01
Perimeter Protection
Full-height physical rotor barrier preventing climbing and unauthorized entry.
02
Heavy-Duty Durability
2.0mm SUS304 stainless steel housing engineered for outdoor environments.
03
10M MTBF Reliability
Heavy-duty mechanism tested to 10 million cycles for non-stop operation.
TECHNICAL SPECIFICATIONS

FT-FM-02 Specifications

1. Dimensions & Construction
Cabinet Dimensions L1630mm * W1500mm * H2310mm
Cabinet Material SUS304 Stainless Steel (2.0mm)
Cabinet Weight 180 kg
IP Protection Level IP65 (Outdoor Waterproof)
2. Passage & Performance
Rotor Structure Full Height 3-Arm Rotor (120°)
Walkway Width 650mm
Passing Speed 25 – 30 people / min
MTBF Reliability 10 Million Cycles
3. Electrical, Drive & Interfaces
Operating Supply AC 100 ~ 240V, 50/60Hz
Power Consumption 60W
Mechanism Drive Semi-Automatic Solenoid / Motor
Communication Interface RS485 / Dry Contact Relay
2D BUILD / ENGINEERING BLUEPRINTS (Click blueprint to enlarge)

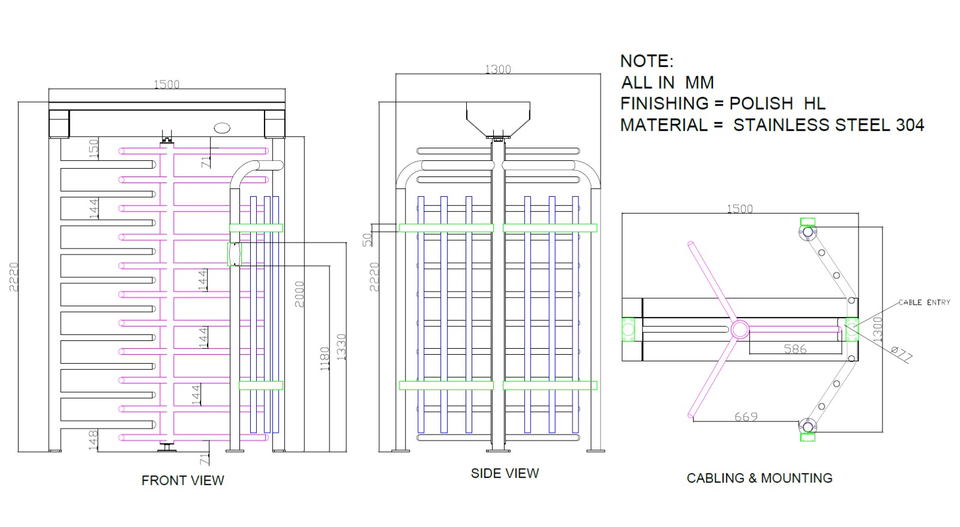

Dimensions & Footprint CAD (800 × 600 mm)
🔍 Enlarge
Dimensions & Footprint CAD (800 × 600 mm)
